50Hz - 60Hz Low Voltage Protection Devices 15VA - 60VA Current Transformers

Place of Origin : China

Brand Name : OEM

Model Number : CA62/20

MOQ : 1 set

Packaging Details : Wooden box packing

Delivery Time : 15 days after signing the contract

Payment Terms : T/T

Supply Ability : 1000sets

Contact Now

50Hz - 60Hz Low Voltage Protection Devices 15VA - 60VA Current Transformers







CA Current Transformers

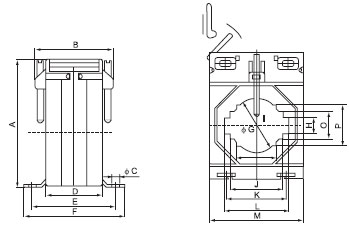

Outline Drawing Of CA62/30-CA104/80
50Hz - 60Hz Low Voltage Protection Devices 15VA - 60VA Current Transformers
Unit:mm
Model A B C D E F G H I J K L M O P
CA62/20 78 36 6.6 36 55 71           21
CA62/30 78 47 6.6 35 55 71 30.5 11 11 26 44 31 62 21 26
CA62/40 78 47 6.6 35 55 71 31 11 16 31 44 41 62 21 26
CA74/40 98 61 6.6 45 67 81 33 12 11 31 47 41 74 21 31
CA74/50 98 61 6.6 45 67 81 41 12 31 41 47 51 74 21 31
CA86/60 110 56 6.6 40 62 76 51 12 21 51 68 61 86 31 44
CA104/80 126 56 6.6 40 62 76 65 12 31 61 68 81 104 31 56

Model Rated Current(VA) Rated Burden(VA) Accuracy Class Rated Voltage(V) Rated Frequency(Hz)
CA62/20 30/5A-80/5A 1.5~2.5 3.0~0.5 720 50/60
CA62/30 50/5A-300/5A 1.5~5 1.0~0.5 720 50/60
CA62/40 200/5A-600/5A 5~10 1.0~0.5 720 50/60
CA74/40 150/5A-800/5A 2.5~20 1.0~0.5 720 50/60
CA74/50 250/5A-1000/5A 5~20 1.0~0.5 720 50/60
CA86/60 250/5A-1200/5A 5~30 1.0~0.5 720 50/60
CA104/80 6020/5A-2000/5A 5~45 1.0~0.5 720 50/60
CA145/100 1000/5A-3200/5A 5~50 1.0~0.5 720 50/60

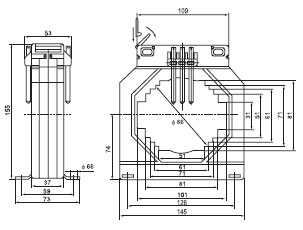

Outline Drawing Of CA145/100
·Rated Current (A)
·Primary / Secondary Current: 1000/5A-3200/5A
·Rated Burden: 15VA-60VA
·Accuracy Class: 1.0-0.2
·Operating Frequency: 50-60Hz
50Hz - 60Hz Low Voltage Protection Devices 15VA - 60VA Current Transformers
