ywz13-200/e23 ywz13-200/e30 ywz13-250/e23 ywz13-250/e30 ywz13-250/e50 Electro-Hydraulic Block Brakes

Place of Origin : China

Brand Name : OEM

Model Number : YWZ13 series

MOQ : 1 set

Packaging Details : Wooden box packing

Delivery Time : 15 days after signing the contract

Payment Terms : T/T

Supply Ability : 1000sets

Rated voltage : 380V

Ambinet temperatrue : -20℃ - 50℃

Frequence : 50HZ

Type : YWZ13 series

Contact Now

ywz13-200/e23 ywz13-200/e30 ywz13-250/e23 ywz13-250/e30 ywz13-250/e50 Electro-Hydraulic Block Brakes

Products brief introduction:
YT1 series electric hydraulic driving device is a set of motor, centrifugal pump, oil cylinder as a whole, compact structure and drive control device, widely used in various block brake and disc brake driving device.
It can also be used for various industrial valves, gate, directional swing and rotation (90 degrees) device and clamping device drive control.

Meet the standard :
YT1 series hydraulic power to promote the insulation class is B, degree of protection of enclosure for IP54.

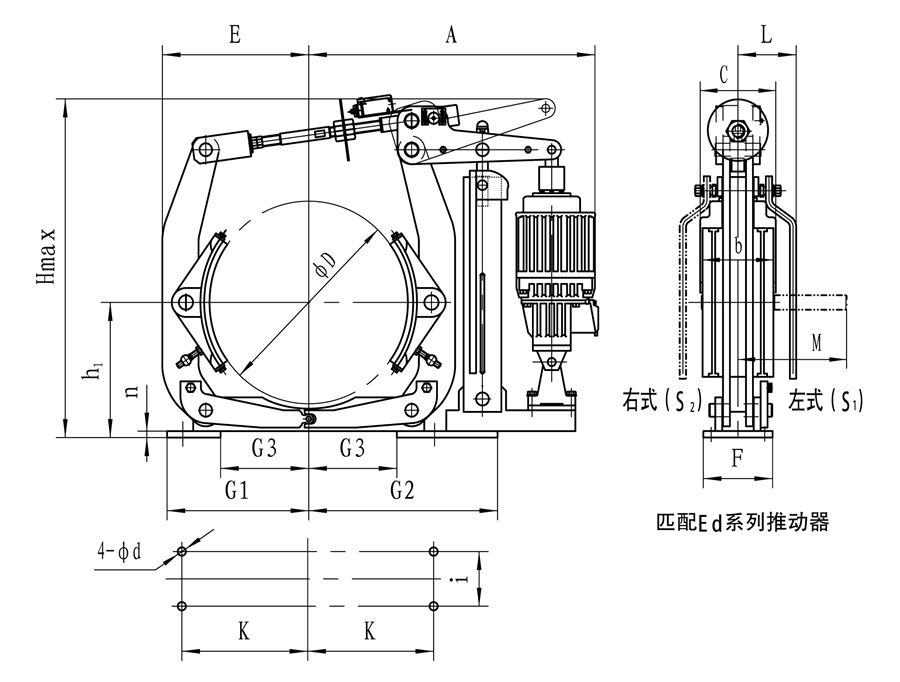

model	thruster	brake torque (N.m)	reback distance (mm)	A	b	C	L	D	d	E	F	G1	G2	H	h1	i	k	M	n	G3	weight (Kg)
YWZ13-200/E23	Ed23/5	100-200	0.7	470	90	160	150	200	17	175	100	210	265	510	170	60	175	140	8	75	32
YWZ13-200/E30	Ed30/5	140-315	0.7	470	90	160	150	200	17	175	100	210	265	510	170	60	(190)	140	8	75	43
YWZ13-300/E30	Ed30/5	250-400	0.8	590	140	160	170	300	22	255	130	300	330	605	240	80	250	180	12	135	65
YWZ13-300/E50	Ed50/6	400-630	0.8	630	140	195	170	300	22	255	130	300	330	605	240	80	250	180	12	135	80
YWZ13-300/E80	Ed80/6	630-1000	0.8	630	140	195	170	300	22	255	130	300	330	605	240	80	(270)	180	12	135	92
YWZ13-400/E50	Ed50/6	400-800	1.2	710	180	195	170	400	22	310	180	350	420	755	320	130	325	220	14	150	120
YWZ13-400/E80	Ed80/6	630-1250	1.2	710	180	195	170	400	22	310	180	350	420	813	320	130	325	220	14	150	130
YWZ13-400/E121	Ed121/6	1000-2000	1.2	700	180	240	170	400	22	310	180	350	420	830	320	130	325	220	14	150	150
YWZ13-500/E80	Ed80/6	800-1600	1.2	810	200	240	180	500	22	390	200	405	535	900	400	150	380	280	16	205	220
YWZ13-500/E121	Ed121/6	1250-2500	1.2	800	200	240	180	500	22	390	200	405	535	900	400	150	380	280	16	205	220
YWZ13-500/E201	Ed201/6	2000-4000	1.2	800	200	240	180	500	22	390	200	405	535	920	400	150	380	280	16	205	220
YWZ13-600/E121	Ed121/6	1800-2800	1.3	925	240	240	185	600	26	470	220	500	600	1080	475	170	475	340	20	240	305
YWZ13-600/E201	Ed201/6	2500-4500	1.3	925	240	240	185	600	26	470	220	500	600	1080	475	170	475	340	20	240	305
YWZ13-600/E301	Ed301/6	4000-6500	1.3	925	240	240	185	600	26	470	220	500	600	1080	475	170	475	340	20	240	305
YWZ13-700/E201	Ed201/6	2500-5600	1.3	980	280	240	220	700	34	530	270	580	650	1290	550	200	540	380	25	300	425
YWZ13-700/E301	Ed301/6	4000-8000	1.3	980	280	240	220	700	34	530	270	580	650	1290	550	200	540	380	25	300	425
YWZ13-800/E301/12	Ed301/12	12500	2.0	1230	320	240	240	800	34	600	310	670	830	1430	600	240	620	440	38	310	545

Conditions of use:
Ambient temperature -20 ℃ ~ ±50 ℃
Relative temperature: should not be greater than 90%
The surrounding environment may not flammable, explosive and corrosive gases
Using the locations of the altitude with GB755-2000
Outdoor rain erosion or corrosive gas and medium should be used in anticorrosion of failure products.

ywz13-200/e23 ywz13-200/e30 ywz13-250/e23 ywz13-250/e30 ywz13-250/e50 Electro-Hydraulic Block Brakes

Please contact our company to get more products details .
