N4 Diaphragm SOR Pressure Switches 103W1-K212-N4-C1A-X for Industrial Pressure Control Need

102/103 Differential PressureSwitches are robust field-mountedinstruments.

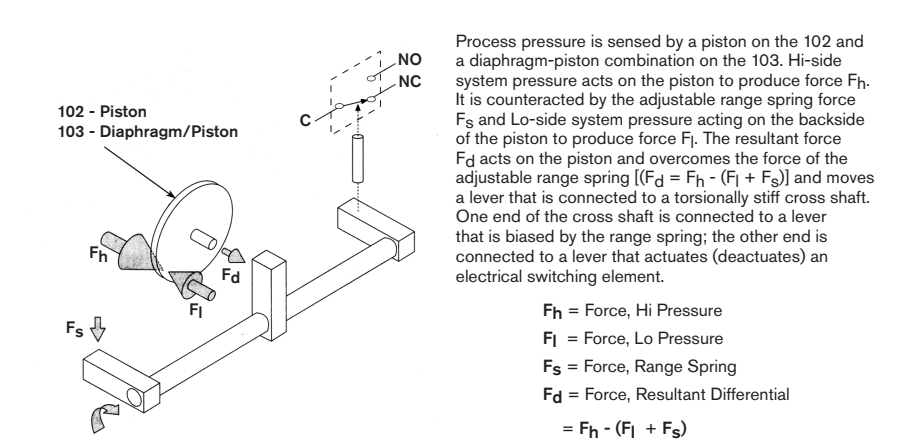

The 102 pressure sensingassembly is a piston; the 103 pressuresensing assembly is a diaphragm-pistoncombination. The 102/103 can be configuredfor service in non-hazardous and hazardouslocations. Switching elements are SPDT orDPDT.



The 102 is suited for low-to-high differential pressure process or fluid power applications where high and varying static pressures, high overrange, proof, shock pressure or cycle rates  are expected. The 103 is suited for low-tomedium differential pressure process or fluid power applications where similar system behavior is expected.









psid (in. wc)
Model Number
103W1 - K212 - N4 - C1A	(7 to 100)
103W1 - K502 - N4 - C1A	(20 to 150)
103W1 - K805 - N4 - C1A	(100 to 1000)
102W1 - K912 - P1-C1A	5 to 25
102W1 - K903 - P1 - C1A	8 to 40
102W1 - K905 - P1 - C1A	10 to 60
102W1 - K603 - P1 - C1A	20 to 100
102W1 - K403 - P1 - C1A	40 to 200
102W1 - K405 - P1 - C1A	50 to 300
102W1- K305 - P1 - C1A	100 to 500
102W1 - K105 - P1 - C1A	500 to 2500



Standard Construction
Housing	W1 (weatherproof)	Aluminum
AD (explosion proof)	316SS
tching Element	K	SPDT 15A @ 250 VAC
EF	SPDT 5A @ 250 VAC
Diaphragm	N4 103-212	Teflon-Coated Polyimide
103-502	Kapton Polyimide Film
103-805	Kapton Polyimide Film
O-Ring	P1	Buna-N
Pressure Port	C1A	1/4” NPT(F); 316SS
